Radiation Monitor for X and Gamma Rays

Home » Technology » New Technologies » Environment and Health Technologies » Radiation Monitor for X and Gamma Rays

Introduction

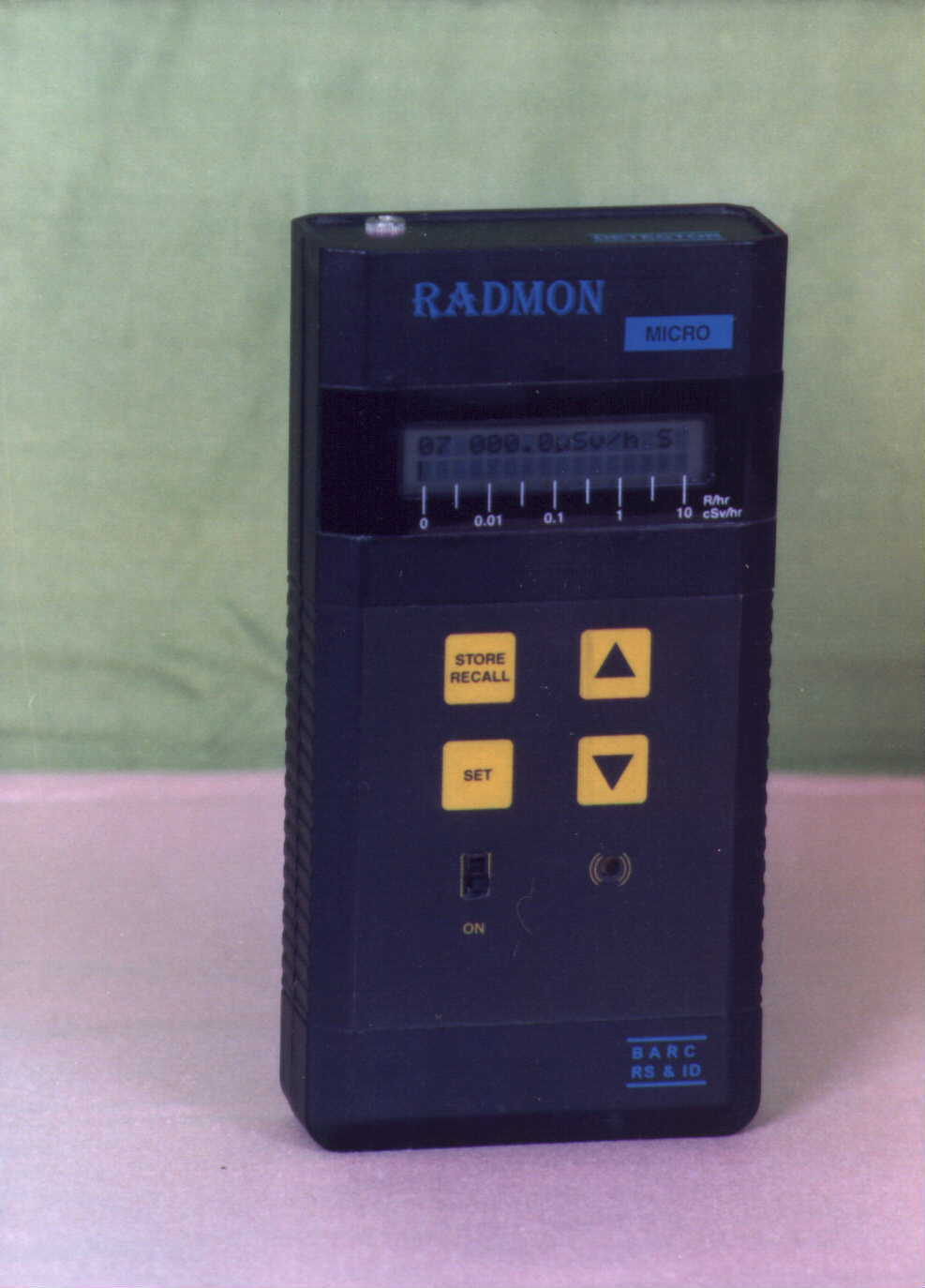

BARC Radiation Monitor (RADMON) is a G. M. based, battery powered, handheld monitor featuring simultaneous measurements of exposure (upto 2 mSv) and exposure rates (upto 200 mSv/hr). A built-in audio alarm during exposure measurements alerts the user to hazardous condition. The integral exposure alarm level can be preset anywhere upto 2 mSv. The detector is provided with an energy compensating filter so as to achieve an overall response within 20% in the energy range of 60 keV to 1.25 MeV.



Specifications



Radiation detected

:

|X and Gamma rays

Detector

:

A miniature halogen quenched G.M. Counter

Ranges


:

Exposure : 2 mSv full scale
Exposure rates   :   0 - 200 mSv/hr
0 - 20 mSv/hr
0 - 2 mSv/hr
0 - 200 �Sv/hr
0 - 20 �Sv/hr

EHT

:

-550Volts. A flickering LED on the panel indicates EHT �ON�.

Audio

:

Buzzer provides beeps for every pulse. Continuous alarm when accumulated exposure  exceeds the preset level.

Energy response

:

Within +/-20% in the energy range 60 keV to 1.25 MeV.

Time constant

:

2.5 seconds on 20 �Sv/hr range

Accuracy

:

Within 10% of reading between 10% and 100% of full scale indication on any range.

Power requirement

:

6 Colts DC (4 x 1.5 Volts`AA� type cells)

Weight

:

800 gms.


Application Areas



This instrument is useful in monitoring the radiation levels in medical, agricultural, industrial and research institutions where radiation sources are used.

  • For further information please contact



Head, Technology Transfer & Collaboration Division,
Bhabha Atomic Research Centre,
Trombay, Mumbai- 400 085
Tel : 091-022-25593897
Fax : 091-022-25505151 / 25519613
Email : headttcd@barc.gov.in
