Flooring Tiles from Waste Gypsum



Applications



Suitable for use in flooring and general purpose as a replacement to ceramic and cement tiles.



Salient Features

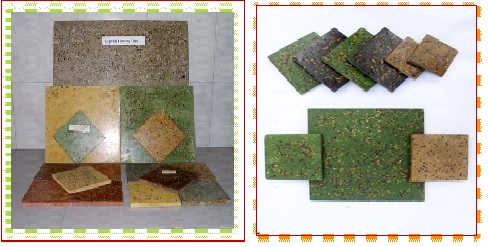

Tiles are cast by vibration moulding of moist mixture containing gypsum anhydrite plaster/fluoro-gypsum, pigments, polymers, fibres etc. Tiles are of high strength, low water absorption and wear resistance and complied with the requirement of IS: 1237-2012.



Technology Package



Process know-how & demonstration.



Techno-Economics



Investment for a plant for producing 40 sq.m tiles per day in 3 shifts is ~Rs.30.0 lakhs. The production cost of one tile (Size 300 x 300 x 20 mm) comes to Rs.25/- per sq. ft.



Scale of Development



Developed on laboratory scale. Pilot plant of capacity 40 sq. m per day may be set up with help of industry.



Status of Commercialization



Licenced



Raw Materials



Fluoro-gypsum/ Phospho-gypsum



Plant, Equipment and Machinery required



Vibrating table, moulds, mixers, curing chamber, drying chamber, rotatory kiln, ball mill, grinding and polishing machine and demoulding plates.



Environmental Aspects



No special measures are required



IPR Status



Indian Patent No.226284
