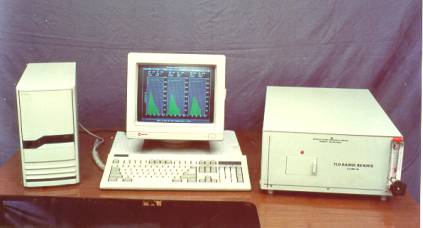

PC Based Auto TLD Badge Reader

Introduction

PC based automatic TLD badge reader (Auto-TLD BR) has been developed to ensure health and safety of persons working in radiation environment, to monitor the radiation dose received by them and maintain a record. The Auto-TLD BR (Model TLDBR 7B) is capable of automatically evaluating 50 TLD badges and has following improved features over manual TLD Badge reader(TLD BR-3B)

Salient Features

• Automatic feeding of 50 TLD badges
• PC based design
• Glow curve storage for authenticating the recorded dose
• Extensive PC-resident software for reader control & dose evaluation
• Built-in diagnostic software & safeguards against malfunctioning
• Fast readout: 30 sec per dosimeter with electronically controlled gas heating
• Range: 1�Sv to 5 Sv

Applications

• Personnel Monitoring of radiation workers in Nuclear power stations, Isotope laboratories, Industrial radiography installations, diagnostic & therapeutic radiology centres, etc.

• For further information please contact

 Head, Technology Transfer & Collaboration Division,
Bhabha Atomic Research Centre,
Trombay, Mumbai- 400 085
Tel : 091-022-25593897
Fax : 091-022-25505151 / 25519613
Email : headttcd@barc.gov.in
